Use Of Sweep Command In Solidworks



Types Of Sweep Boss/Base

1) Sketch profile.

2) Circular profile.

1) Sketch profile;-

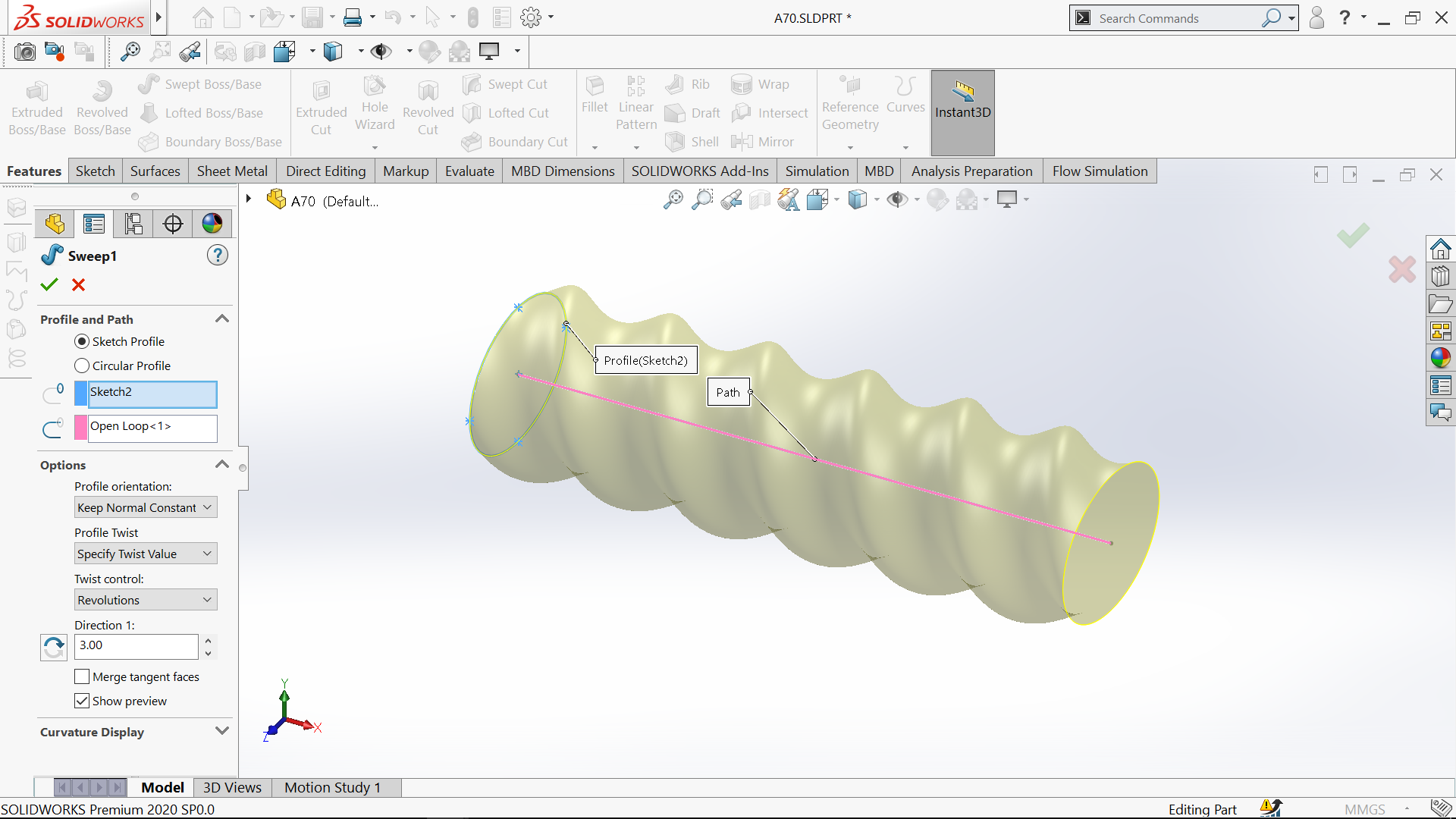

      In sketch profile you have to draw any sketch profile and one path with respect to profile

as shown in following picture

- Then select sketch profile in profile selection box And path in path selection box

- You Can select profile orientation & profile twist in Options

As shown in following picture

2) Circular Profile :-

In this type you need to draw only path or line and enter the diameter of circle you needed then after selecting the path it will be converted into circular sweep

For Tutorial of how to use sweep command see below

To Download This 3D Part file Click Here

For more part designs And Updates Visit Again to our website

please share your valuable feedback in comment section
